Olympic Basketball Arena

Exterior of the Olympic Basketball Arena

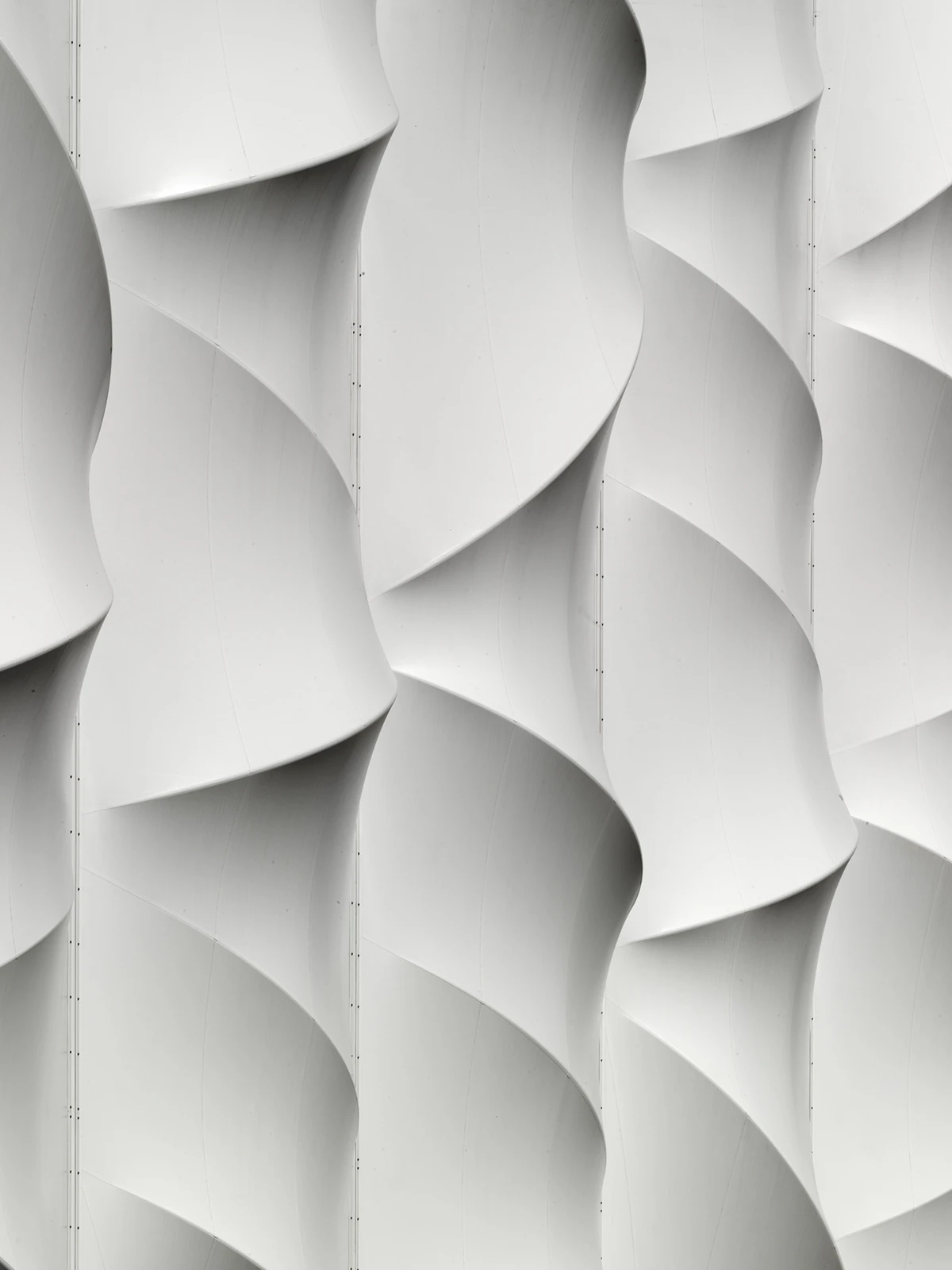

Exterior material detail Olympic Basketball Arena
Location
London, United Kingdom
Status
Completed
Year
2011
Experience
Sports
Awards

ODA Health, Safety and Environmental Management Awards 2010

Project Performance Award 2010

Highly Commended, Health and Safety Design Team Award 2010

Westminster Society Biennial Award for a Contribution to Urban Vitality 2013

The London 2012 Olympic Games were widely billed as the most sustainable ever and WilkinsonEyre's design of the Basketball Arena was a crucial part of the architectural mix on the Olympic Park. The challenge was to create a world class sporting venue that would not only be simple to erect but constitute a sustainable legacy once the Games were over.

WilkinsonEyre was appointed with SKM and KSS as the design team and devised a solution in which two-thirds of the materials and elements within the building could be reused or recycled after the Games. During the Olympic Games the arena seated 12,000 for the basketball and handball competitions and reduced to a capacity of 10,000 for wheelchair basketball and rugby during the Paralympic Games.

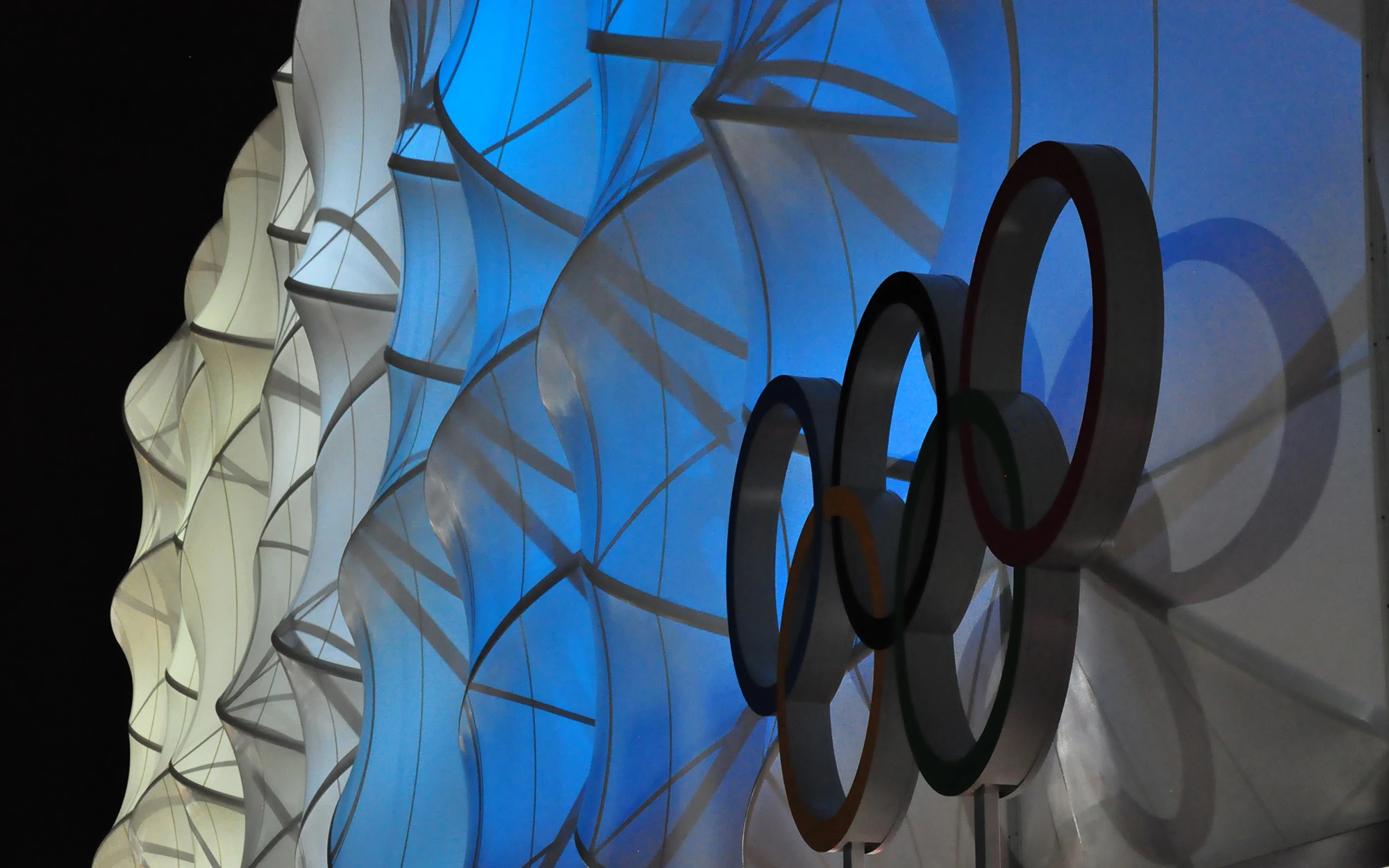

Exterior detail of Olympic Basketball Arena

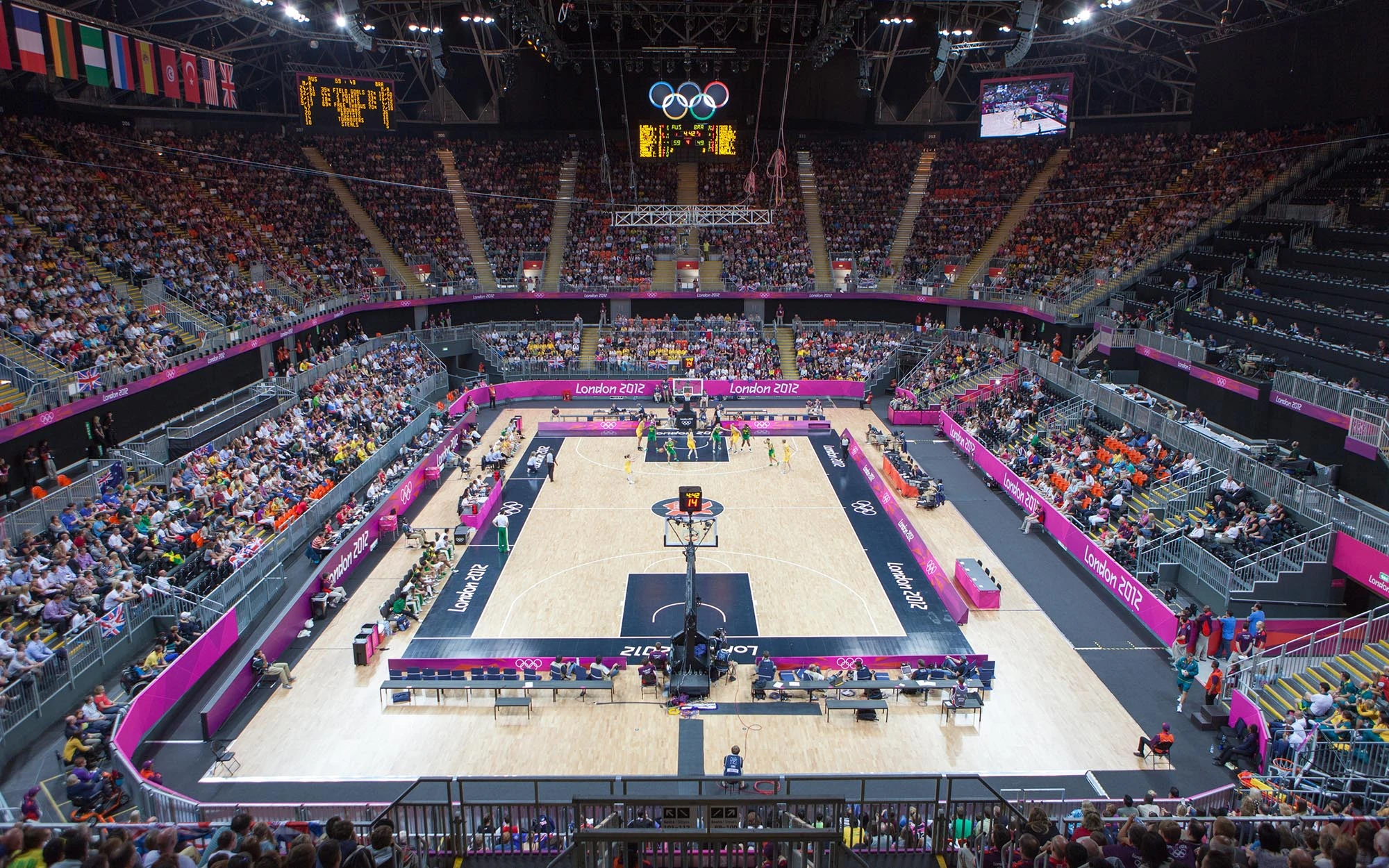

Interior of Olympic Basketball Arena

After exploring a series of strategies for creating a structure with reusable and recyclable elements, the team opted for a lightweight steel frame and fabric cladding, allowing this enclosure to be constructed in just six weeks. The structure of the 30m-high, rectangular volume (equivalent to a seven-storey building) was composed of a series of portal frames, connected by a dramatic matrix of lightweight steel members. This structure was wrapped in 20,000m² of translucent PVC, stretched across arched steel framing modules that pushed the fabric out to create an undulating, three-dimensional texture across the façade.

Despite the simplicity of the design strategy, the building's exterior was highly expressive, with the play of sunlight over the crisply sculptural white membrane during the day. During evening sessions, the venue was transformed into a theatrical light installation, with dynamic colour-changing effects across the surface skin.

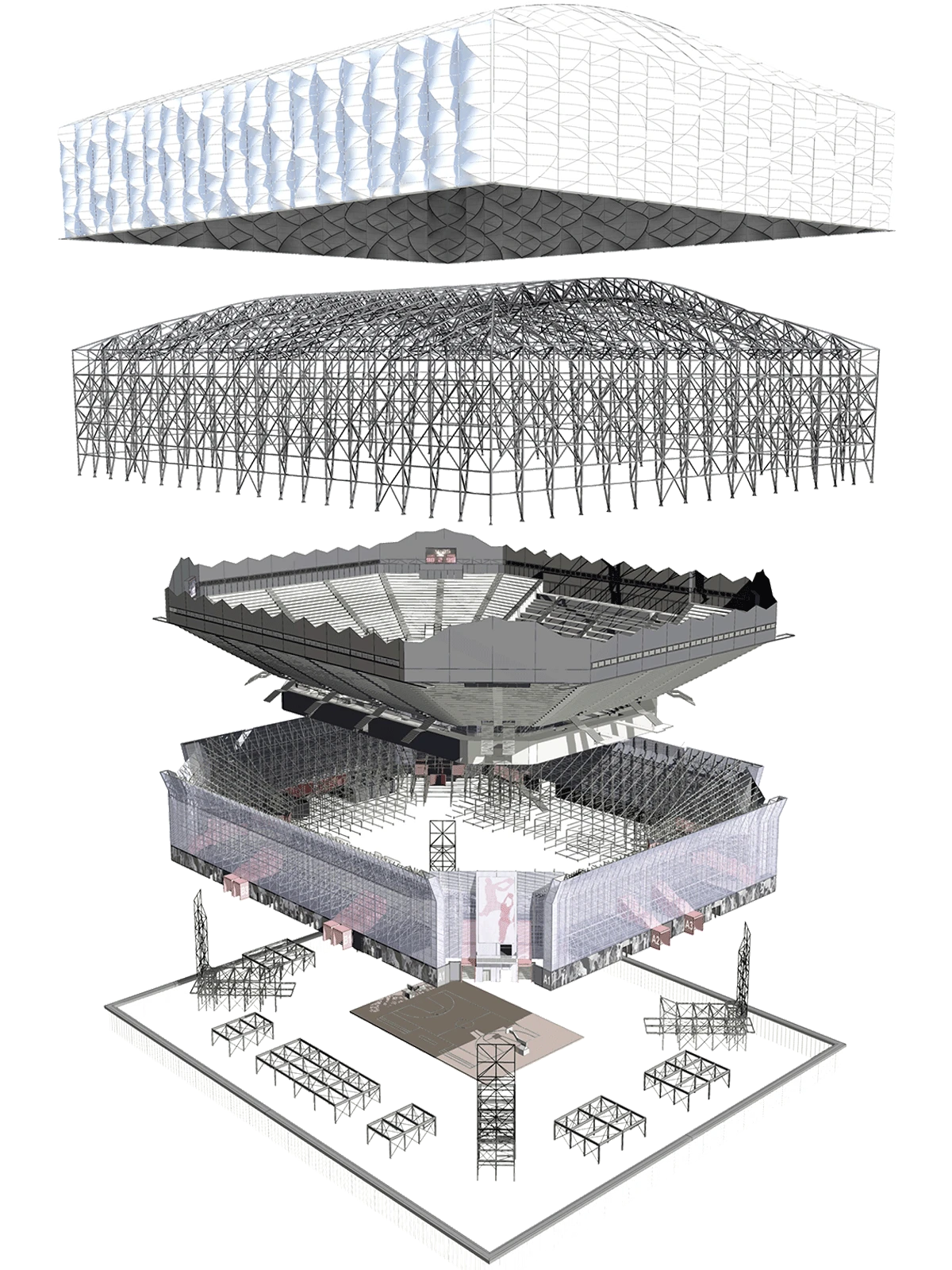

Diagram of Olympic Basketball Arena

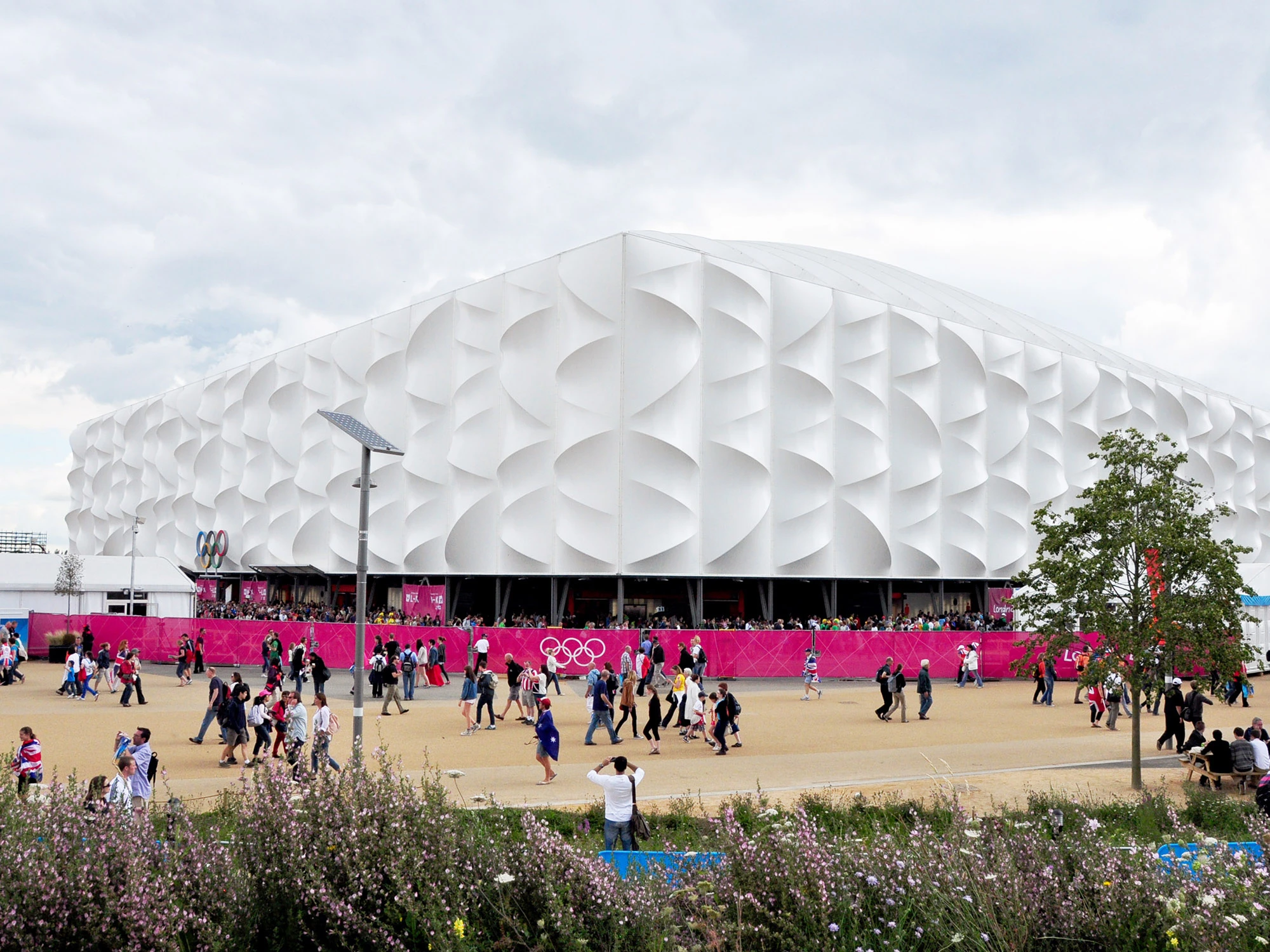

Exterior of Olympic Basketball Arena
